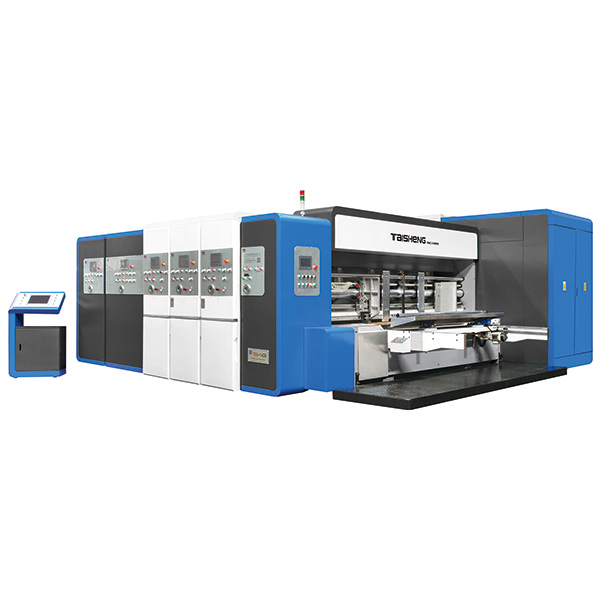

整机功能介绍
PerformanceCharacteristicsofTheWholeMachine
前缘吸附送纸，风量可调，主机变频控制。
PLC电脑相位电动调整，各连接部气动锁定，电动分合，
精磨齿轮，齿轮润滑采用喷淋式循环润滑，免键结构锁紧，
套色准确，印刷图案精美。
使用和维修方便，自动化程度较高、高效率生产等。
The whole vacuum transfer design，full version printing with high definition.
Lead-edge suction feeding system，adjustable air volume，frequency convertor main motor.
Phase electric adjustment by PLC , connection unit locking by pneumatic,electrically control the separation and combination of machine.
Well grinded gear with spray lubrication system，Gears adopt keyless connection.
Chromatically multicolor printing accurately , printing effect beautiful.
Easy operation and convenient maintenance，high degree of automation，high effciency production.
技术参数(SPECIFCATIONS)
|
机型Model
|
TSG-2S-920
|
TSG-2S-1224
|
TSG-2S-1424
|
TSG-2S-1628
|
|
机械最高速度（张/分）
Max.MachineSpeed(pcs/minute)
|
280
|
230
|
200
|
180
|
|
最大进纸尺寸
Max.FeedingSize(mm)
|
900×2000
|
1200×2400
|
1400×2400
|
1600×2800
|
|
最大隔张送纸尺寸
JumpFeedMax.CardboardSize(mm)
|
1200×2000
|
1500×2400
|
1600×2400
|
1900×2800
|
|
最小进纸尺寸
Min.CardboardSize(mm)
|
300×600
|
365×600
|
400×600
|
450×600
|
|
最大有效印刷面积
Max.PrintingSize
|
900×1960
|
1200×2360
|
1400×2360
|
1600×2760
|
|
最小开槽间隙（正刀）
MinSlotterBladeSpace(sameside)(mm)
|
150×150×150×150
|
150×150×150×150
|
150×150×150×150
|
150×150×150×150
|
|
最小开槽间隙（反刀）
MinSlotterBladeSpace(againstside)(mm)
|
240×65×240×65
|
260×65×260×65
|
260×65×260×65
|
260×65×260×65
|
|
最大开槽深度
MaxSlottingDeep(mm)
|
250
|
300
|
350
|
400
|
注：产品的规格更改或机构改良，恕不另行通知。
Notes:Wewillnotgiveanotheradviceifwehavecorrectedthespecificationsoftheproductsorimprovedthemechanisms.
|
